Blister Packaging for Syringes, Ampoules and Medical Devices

Packaging an ampoule is not the same as packaging a tablet.

A tablet generally requires a compact cavity and controlled feeding. A glass ampoule needs sufficient clearance, careful handling, and protection against movement or breakage.

Syringes introduce different challenges because of their length, irregular geometry, and protruding components.

For manufacturers considering blister packaging for these products, the first question is not simply whether the machine can form a blister. It is whether the complete package will protect the product throughout handling, transportation, storage, and use.

Why Product Shape Matters

Medical consumables are available in a wide range of dimensions and geometries.

Glass ampoules have narrow necks and wider bodies. Syringes may include flanges, plungers, caps, or other protruding components. Small diagnostic accessories may have sharp corners or multiple components that must remain together.

These differences affect cavity design.

A poorly designed blister may allow the product to move excessively. In other cases, the cavity may fit too tightly, making removal difficult or increasing the risk of damage.

For glass products, packaging engineers should consider the contact points between the container and formed material.

For irregularly shaped products, the cavity must provide sufficient space for the entire component while maintaining appropriate clearance around critical features.

Physical samples are valuable during tooling design because small dimensional details may not be obvious in drawings.

Forming Depth and Cavity Arrangement

Blister packaging machines have limits on forming area and depth.

These limits determine whether a product can fit inside the package and how many products can be arranged within each formed web.

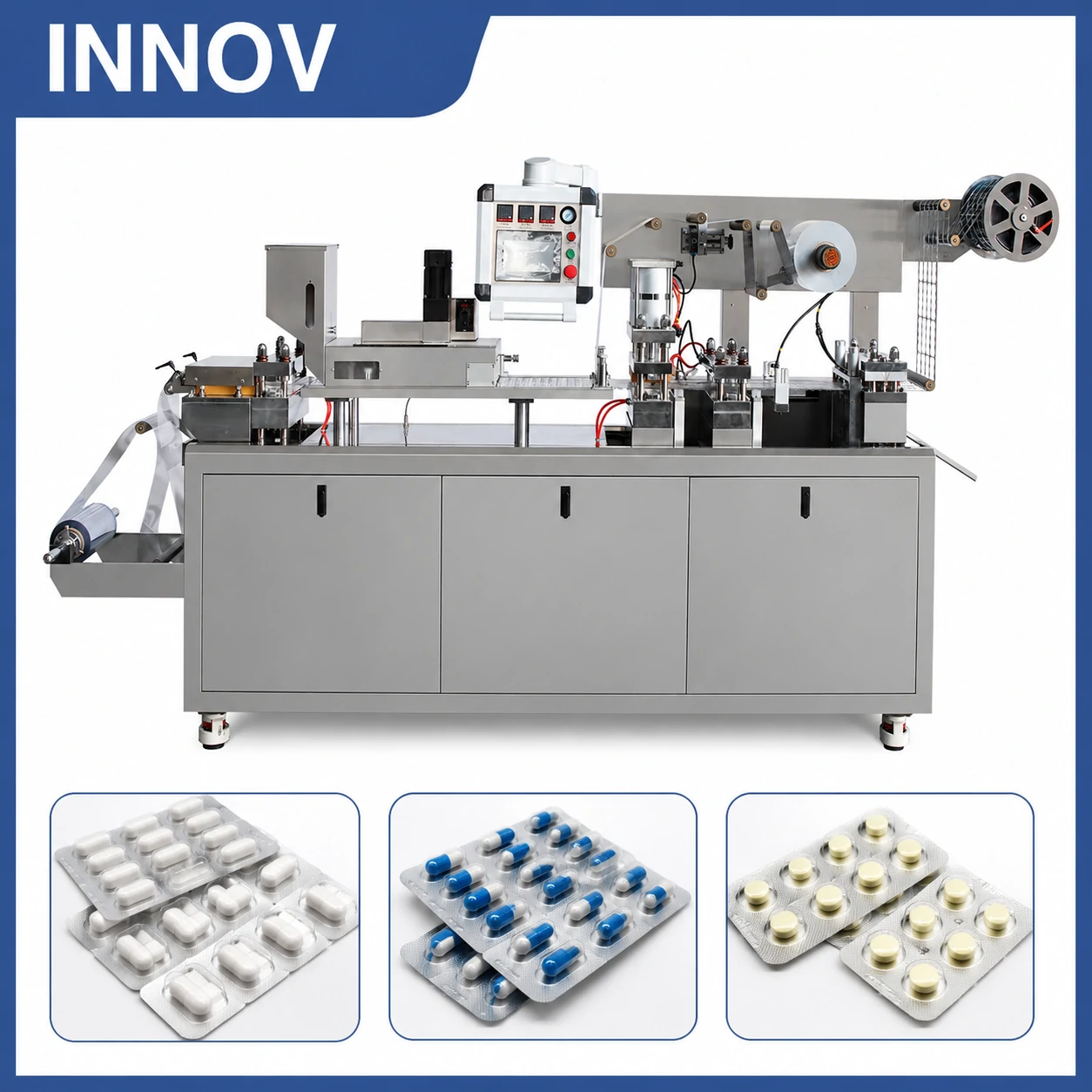

For example, the INNOV automatic blister packaging machine lists a maximum forming area of 240 × 150 mm and a maximum forming depth of 26 mm.

These specifications provide a useful starting point when assessing packaging possibilities for small medical products.

However, not every syringe or ampoule will fit these dimensions. Product length, flange geometry, sealing margins, and material forming characteristics must be considered before developing the tooling.

For deeper or unusually shaped products, a different packaging configuration may be necessary.

Automatic Feeding for Fragile and Irregular Products

The feeding process can be more complicated than blister forming itself.

Regular tablets may be transferred into cavities using conventional feeding methods, while glass ampoules or irregular medical components may require dedicated guides or controlled placement systems.

The objective is to position each product accurately without excessive impact or pressure.

Before approving a feeding system, manufacturers should evaluate product orientation, possible collisions, empty cavities, and the risk of breakage.

For example, a line packaging fragile glass ampoules should be tested using representative containers.

The test should assess handling stability throughout the packaging cycle, not simply whether the machine can run.

Choosing the Right Packaging Material

Packaging materials determine more than the appearance of the finished blister.

Forming material thickness, rigidity, barrier properties, and sealing compatibility all influence packaging performance.

Thermoformable plastic films may be appropriate for certain protective packages, while other medical applications require specialized tray-and-lid systems.

The correct selection depends on the product and the intended purpose of its packaging.

For example, a nonsterile medical accessory placed in a protective blister has different requirements from a sterile disposable device intended to remain sterile until use.

Protective Packaging and Sterile Barrier Packaging Are Different

An automatic blister machine capable of sealing plastic and aluminum materials is not automatically qualified to manufacture validated sterile barrier systems.

Sterile medical device packaging may require specialized materials, validated sealing processes, package-integrity testing, microbial barrier performance, and compliance with applicable standards, including relevant parts of ISO 11607.

Manufacturers must establish suitability through their own quality and regulatory processes.

Buyers should therefore clearly identify whether their application involves nonsterile protective packaging, pharmaceutical primary packaging, or a sterile medical device barrier system.

Sealing Consistency and Package Inspection

A correctly formed cavity does not guarantee an acceptable finished package.

The lidding material must be compatible with the forming web and sealing process.

Sealing temperature, pressure, dwell time, and mechanical alignment must be controlled according to the approved package specification.

Potential defects include incomplete seals, damaged films, wrinkles, and misaligned packaging.

For nonsterile protective packaging, inspection may focus on appearance, dimensions, product retention, and seal performance.

For regulated pharmaceutical or sterile medical device applications, additional validation and integrity testing may be necessary.

A packaging trial should therefore evaluate finished packages rather than focusing only on operating speed.

Why Custom Tooling Is Often Necessary

A factory packaging one type of ampoule may not require the same blister layout as a manufacturer packaging several medical components.

Custom tooling allows manufacturers to develop cavities around the product's actual dimensions and desired packaging arrangement.

The customization process should begin with physical samples and technical drawings.

The supplier and customer can then review cavity dimensions, material selection, product arrangement, feeding methods, and cutting requirements.

Where necessary, sample packaging trials can identify possible problems before final tooling production.

For manufacturers planning multiple product formats, mold replacement procedures and changeover requirements should also be evaluated.

Preparing for a Blister Packaging Machine Trial

A useful packaging trial should answer specific questions about the product and finished package.

For ampoules, this may involve checking whether the packaging process causes excessive movement, glass contact, or breakage.

For syringes, the objective may be to confirm that the complete component fits inside the cavity and can be removed appropriately.

For small medical accessories, the priority may be keeping several components in the correct position.

Manufacturers should prepare representative samples, packaging drawings, material specifications, and acceptance criteria.

The supplier can then assess whether standard tooling is appropriate or a customized configuration is required.

Discuss Your Medical Product Packaging Requirements with INNOV

INNOV provides automatic blister packaging equipment for a range of small-product packaging applications, with customized tooling available for evaluation.

Manufacturers considering blister packaging for ampoules, syringes, or other irregularly shaped products can explore the INNOV blister packaging machine specifications and available configurations.

Before selecting equipment, customers should share their product dimensions, packaging samples, target packaging format, material requirements, and expected production output.

For medical applications, suitability must also be evaluated against applicable quality and regulatory requirements.

A successful packaging line is one that produces the required package consistently while protecting the product and supporting the manufacturer's quality process.
